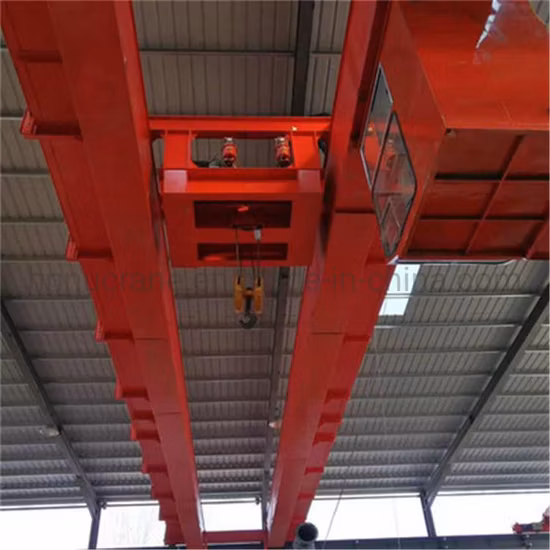

10 Ton Double Beam Bridge Crane for Industrial Workshop

Basic Info.

Model NO.	LH double girder overhead crane
Maximum Lifting Weight	20-50t
Main Girder Form	Double Girder
Type	Ordinary
Travelling of Crab	38.4m/Min
Power	380V50Hz3p
Travelling of Trolley Motor	Yzr200L-8/2*18.5
Max Wheel Pressure	318kn
Travelling of Crab Motor	Yzr180L-8/13
Crane Travelling Speed	44.6m/Min
Hoist Travelling Speed	87.6m/Min
Main Hoist Speed	14.5m/Min
Span	10.5-31.5m
Transport Package	Electric Parts and Electric Hoist Are Packed by St
Specification	20 or 40 feet container
Trademark	Nucrane
Origin	China, Henan
Production Capacity	1000sets/Years

Product Description

10 Ton Double Beam Bridge Crane for Industrial Workshop1.Overhead crane introduction

A Double Girder Bridge Crane is an overhead bridge crane that has two bridge girders that support the trolley and hoist. The trolley and hoist ride on top of the two bridge girders. The double girder bridge crane is considered top running when the bridge girders ride on top of the runway beams.1. Standard Capacities 5 Ton - 160 Ton2. Spans to 150 Feet / 45 Meter3. Duty group: Class D2.Overhead crane main parameters

lifting weight							T	50/20
Span							M	25
Max lifting height			Main hanger				M	6
			Auxiliary hanger					8
Speed		Hoisting	Main			A5	M/min	6.1
			Auxiliary					7.2
	Travelling of crab						M/min	38.4
	Travelling of trolley				A5			65
Motor	Hoisting			Main	A5		Type/kw	YZR315M-10/85
				Auxiliary				YZR225M-8/26
	Travelling of crab							YZR180L-8/13
	Travelling of trolley				A5			YZR200L-8/2*18.5
Weight	Crab				A5		Kg	29150
	Total weight				A5			50000
Max wheel pressure					A5		Kn	318
Steel track recommended								QU80 or square steel 100
Power source								Three-phase A.C.50hz 380v

3.Safety is the most important issue for crane. To ensure the safety, the following safety devices are equiped in cranes.
Crane traveling limit switchWeight overload protection deviceLifting height limit deviceVoltage lower protection functionPhase sequence protection functionEmergency stop functionRain cover for outside hoist, driving units, electrical cubicle.Warning indicator: flashing lights and warning sound.Wireless infra-detector for anti-collusion

4.Overhead crane detail parts pictures

Main beam end beam winch drum

Crane wheel Bus bar
5.Pls tell me the following information and we will send you a most suitable model overhead crane:
1. what is the Crane Capacity?2. what is the Crane Span?3.what is the crane Lifting Height?4. Hoist Application and Work Class5. Do you need rail? if you need pls tell me the crane traveling length.6. Control Method: Pendant or Remote Control?7. what is your Local Power Supply?(380v50hz3p)

6.FAQ
1. What kind of after-sale services will you supply? One year warranty. Providing free quick-wear part. Low charge for continue maintenance when warranty is expired. Exclusive engineer support at any time. We can provide free training to end-users. 2. Can you make customized products? Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands, our engineers can make suitable design for you 3. Can you book the boat for me, as we do not have our own forwarder? Sure, we have our own forwarder, and we had cooperated with the forwarder more than 5 years 4. Can you supply the quality certification? Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself, or you can let some third-partied to do the inspection for you. 5. How can I install the crane? Our engineers can come to your work site to guide the installation. 6. Can I have a visit to your factory? You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.

7.If you have any inquiry of crane, pls contact me freely.
